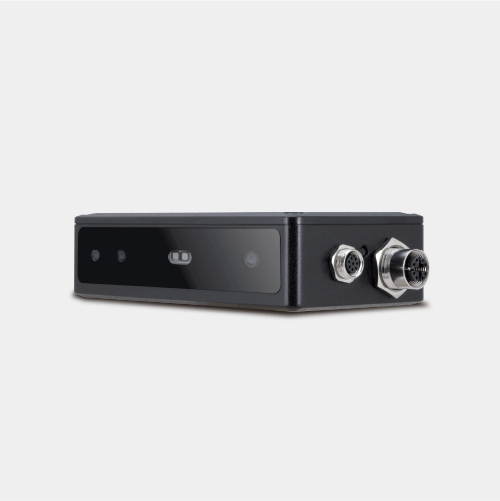

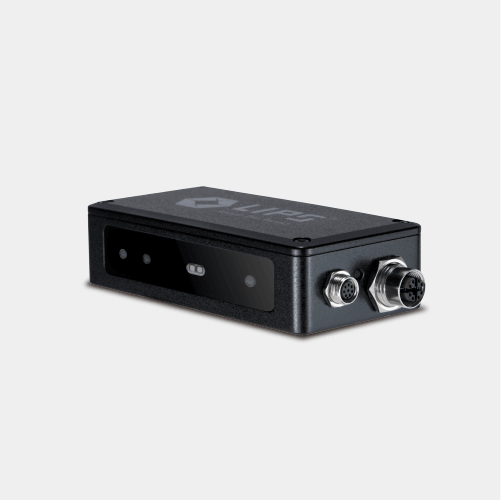

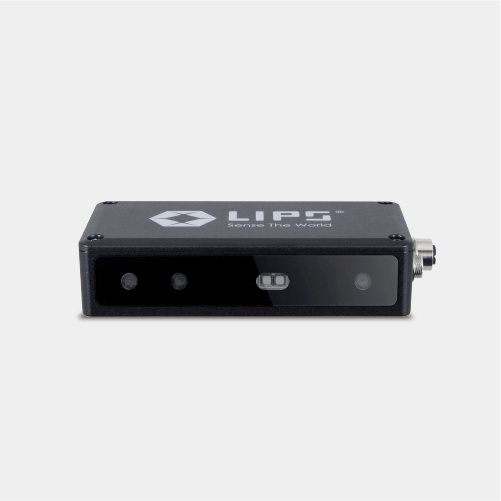

LIPSedge™ AE430 is a compact and light-weight ruggedized 3D Stereo Camera designed for industrial use. With only 288 grams of weight, compact form factor, GigE/PoE support, built-in heatsink, and IP67 dust & water-proof, LIPSedge™ AE430 is an excellent 3D camera choice for the robotic hand-eye and factory automation applications.

LIPSedge™ AE430 can satisfy limitations in robotic arm carrying weight and space constraint while providing fast and tight PoE connectivity with M12 locked-cable to withstand robotic arm twists and turns.

Product Highlights

  • Compact form factor (135 x 100 x 42mm), light-weight (280g), and ruggedized casing (IP67 compliant)'
  • Features RGB-D sensor with the highest depth quality per degree and enhanced depth image quality
  • Supports GigE with PoE that allows data transmission and power supply (802.3at) up to 100 meters
  • Provide persistent network connection to remain in the same network session even after occasional disconnection (up to 15 seconds) from the network to ensure data reliability
  • Built-in heatsink to withstand higher working temperature in a factory environment
  • Features edge computing with AI SOC for additional Neural Network applications to run at 5.0 TOPS
  • Supports industrial 3D framework such as ROS, NVIDIA Isaac, OpenNI, OpenCV, and HALCON
  • Compatible with LIPS ® comprehensive middleware portfolio
Depth Technology Active Stereo
Depth XY Resolution 1280x720@30fps, 640x480@60fps
Depth Max. Working Distance 10 m
Depth Min. Working Distance 0.16 m
Depth Frame Rate Up to 60fps
Depth Shutter Type Rolling Shutter
Depth FoV (H x V x D) 65° x 40° x 72°
Depth Z Accuracy ≤2% (up to 2 meters and 80% of FoV)
*The Accuracy will vary with distance.
RGB Resolution 1920x1080@15fps, 1280x720@30fps, 640x480@60fps
RGB FoV (H x V x D) 69.4° x 42.5° x 77°
Illumination Type Infared
Illumination Wavelength 850nm
Inertial Measurement Unit Sensor 6-axis (3D Accelerator & Gyroscope)
Neural Processing Unit (NPU) ARM Cortex Quad Core ARM Corex-A73, paired with Dual Core
Cortex A-53 CPU, ARM Mali-G52 GPU
Run neural network applications at 5.0 TOPS
Dimension (mm) 118 x 32 x 60 mm
Weight(g) Approximately 280 g
Ambient Temperature 0 ~ 40˚C
Storage Temperature -40 ~ 60˚C
Built-In Industrial Heatsink
Output Interface M12 to Gigabit Ethernet cable for power and data
Power PoE (IEEE 802.3 at/af)

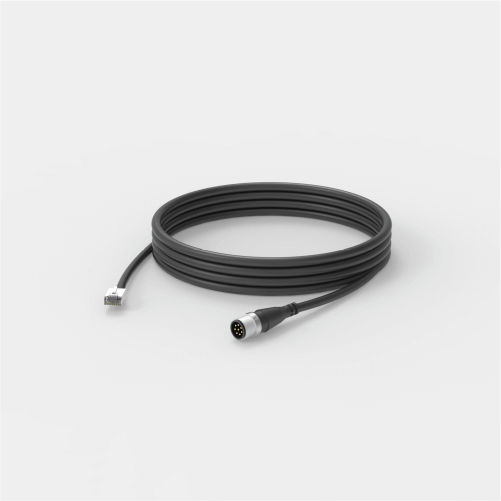

M12-to-RJ45 Cable (included)
Power wire (12V, 1A) with M8 standard connector
Working Environment Indoor / Outdoor
SDK Multiple Frameworks supported: OpenNI, OpenCV, NVIDIA Isaac, ROS/ROS2, Halcon
OS Windows 10
Ubuntu 18.04 / 20.04 / 22.04 LTS
Environment Indoor / Outdoor
