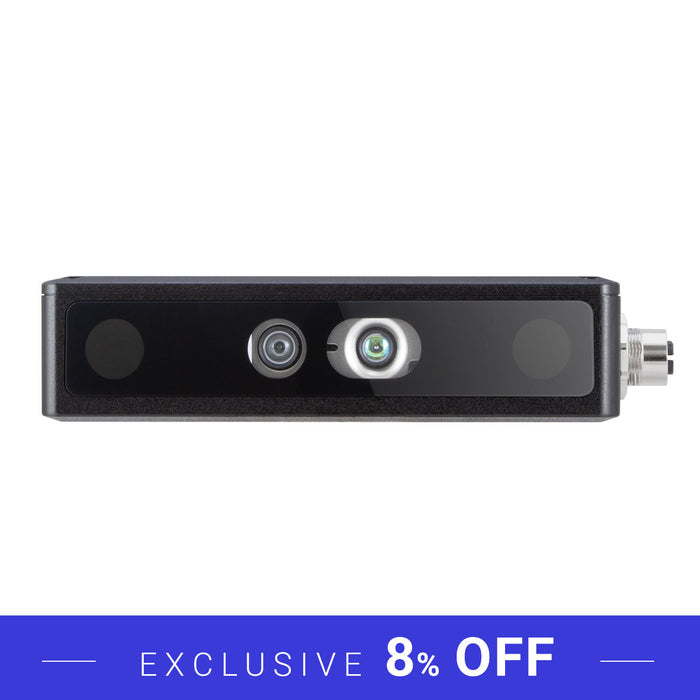

From the LIPSedge AE series, the LIPSedge™ AE470. With less than 300 grams of weight, compact form factor, GigE/PoE support, edge-AI SOC, and IP67 dust & water-proof.

LIPSedge™ AE470 is an excellent 3D camera choice for the robotic hand-eye and factory automation, and many other applications which require also long-range distances captures and detection.

Product Highlights

  • Global shutter - LIPSedge™ AE470 uses Global shutter technology in which an image sensor’s pixels to start exposing and stop exposing simultaneously for every image capture
  • Compact & Industrial Ready -  LIPSedge™ AE470 features compact form factor (135 x 100 x 42mm), light-weight body (280g), and ruggedized casing (IP67 compliant)
  • 10+ Meters Long Range - LIPSedge™ AE470 is best suitable for detections that require long distances and enhanced range 3D depth mapping
  • An IMU inside - The LIPSedge™ AE470 comes with a built-in 6 axis Inertial Measurement Unit (IMU)
  • Supports GigE with PoE that allows data transmission and power supply (802.3at) up to 100 meters
  • Provide persistent network connection to remain in the same network session even after occasional disconnection (up to 15 seconds) from the network to ensure data reliability
  • Built-in heatsink to withstand higher working temperature in a factory environment
  • Features edge computing with AI SOC for additional Neural Network applications to run at 5.0 TOPS
  • Supports industrial 3D framework such as ROS, NVIDIA Isaac, OpenNI, OpenCV, and HALCON
  • Compatible with LIPS ® comprehensive middleware portfolio
Depth Technology Active Stereo
Depth Baseline 95mm
Depth Max. Working Distance 10+ m
Depth Min. Working Distance 0.52m
Depth Frame Rate 1280x720@30fps
Depth Shutter Type Global Shutter
Depth FoV (H x V x D) 87° x 58° x 95°
Depth Z Accuracy ≤2% (up to 4 meters and 80% of FoV)
*The Accuracy will vary with distance.
RGB Resolution 1280x800@30fps
RGB FoV (H x V x D) 87° x 58° x 95°
RGB Shutter Type Global Shutter
Illumination Type Infared
Illumination Wavelength 850nm
Illumination Pattern Type Static
Illumating Component Vertical-cavity surface-emitting laser (VCSEL)
A.I. Processor ARM Cortex Quad Core ARM Corex-A73, paired with Dual Core Cortex A-53 CPU, ARM Mali-G52 GPU
Dimension (mm) 130 x 32 x 66 mm
Weight(g) ≤ 300 g
Ambient Temperature 0 ~ 40˚C
Storage Temperature -40 ~ 70˚C
Built-In Industrial Heatsink
Output Interface M12 to Gigabit Ethernet cable for power and data
Power PoE (IEEE 802.3 at/at)
M12-to-RJ45 Cable (included)
Power Wire (12V, 1A) with M8 standard connector
Working Environment Indoor / Outdoor
SDK Multiple Frameworks supported: OpenNI, NVIDIA Isaac, ROS
OS Windows 10
Ubuntu 18.04 / 20.04 / 22.04 LTS
Environment Indoor / Outdoor
