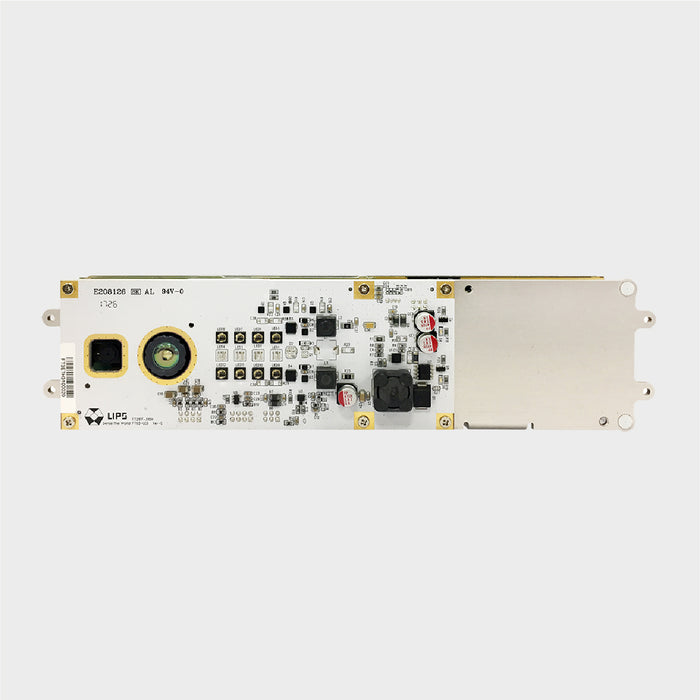

LIPSedge™ AT is a standalone FPGA-based 3D ToF camera with high-performance edge processing capability.
LIPS® introduced LIPSedge® AT, the all-in-one standalone FPGA-based (Intel® Cyclone® V) 3D ToF camera that is the first of its kind. It’s ready to operate independently as a smart camera. The patented onboard SDK software (already pre-installed in the module) guarantees that you'll be up and running at no time while enjoying its lightning fast and surefooted edge processing performance.
| Depth Technology | Time-of-Flight |
| Depth FoV (H x V x D) | 74.2° x 58.1° x 88° |
| Depth Max. Working Distance | 8 m |
| Depth Min. Working Distance | 1.5 m |
| Depth Frame Rate | QVGA @ 30FPS |
| Depth Aperture | f/1.2 |
| Depth Resolution | Up to 1% of Distance |
| RGB Resolution | 1600x1200 @ 15fps, 640x480@30fps |
| RGB FoV (H x V x D) | 68.9° x 54.7° x 81.3° |
| Illumination Type | LED x 8 pcs |
| Illumination Wavelength | 850nm |
| Edge Processor | Intel, FPGA onboard Cyclone V |
| Dimension (mm) | 190 x 50 x 65 mm |
| Interface | Power-over-Ethernet (802.3at) |
| Operating Temperature | 0 ~ 50˚C |
| Storage Temperature | -20 ~ 60°C |
| Power | 21W |
| Output Format RGB | RGB888 |
| Output Format Depth | RAW 16 bits |
| Output Format Infrared | RAW 16 bits |
| Operating Mode | Standalone, Host-Client |
| SDK | OpenNI 1.5 (2.2 Version: Upon Request) |
| OS | Standalone: Linux
Host-Client: Linux, Windows |
| Environment | Indoor |
