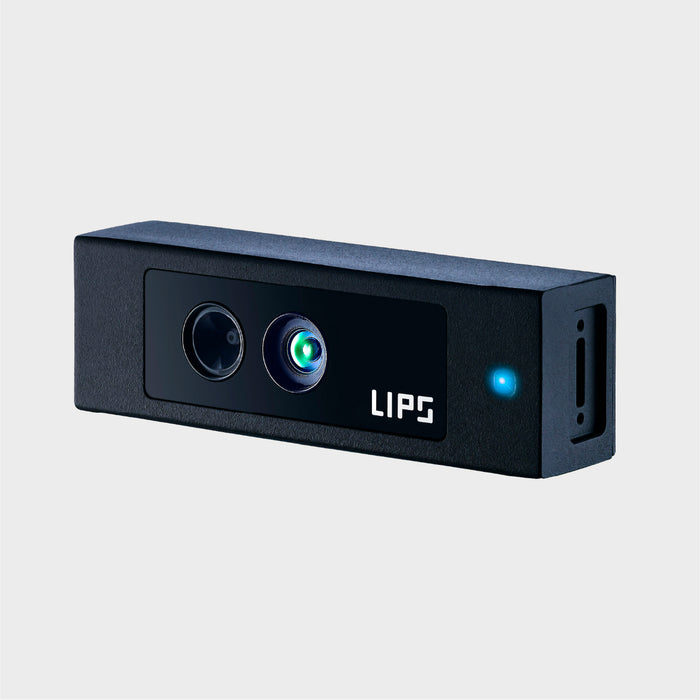

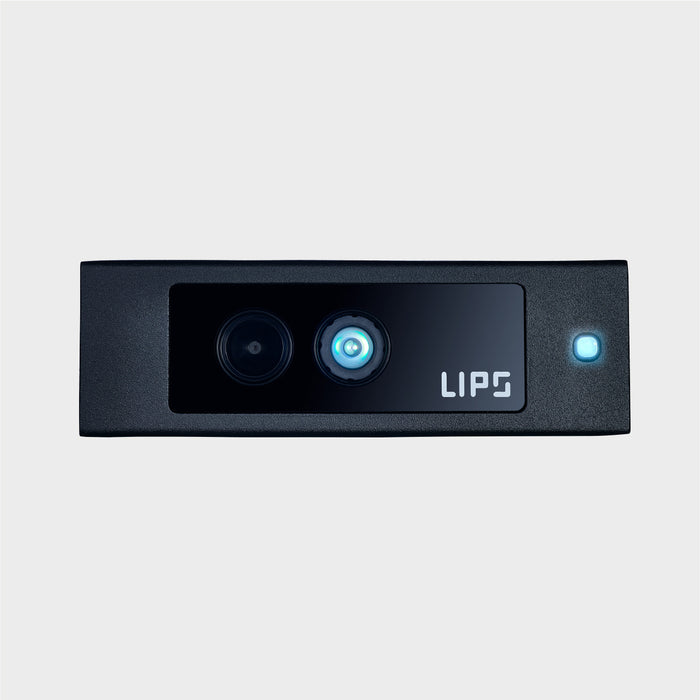

LIPSedge™ DL is a versatile and ready-to-use 3D ToF camera that ouptput both 2D and 3D data with high depth resolution in real-time.

LIPSedge® DL is the sturdy flagship that is built to be a ready-to-use versatile ToF camera. It works straight out of the box by plugging this little magic to a host running Windows, Linux or Android through USB 3.0 Micro-B interface. LIPSedge® DL fits wild application market from enterprise industrial usages, such as facial recognitions, medical detections or machine vision solutions, to AR/VR and consumer electronic market, such as gaming or automotive applications.

Product Highlights

  • Works straight out of the box by plugging to a host running Windows, Linux or Android through USB 3.0 Micro-B interface
  • Versatile 3D ToF camera that can apply in variety of industrial and enterprise applications inclduing machine vision, medical detections, facial recognition, AR/VR, automotive, and gaming
  • Support of LIPS strong middleware portfolio
  • Winner of 2019 Taiwan Excellence Award
Depth Technology Time-of-Flight
Depth Operating Range Near Mode 0.2 ~ 1.0m
Normal Mode: 1 ~ 4m
Depth Aperture f/1.2
Depth Min. Working Distance 0.16 m
Depth Frame Rate 320x240 @ 30fps (Native)
640x480@30fps (Default)
Depth Shutter Type Rolling Shutter
Depth FoV (H x V x D) 74.2° x 58.1° x 88°
Depth Z Accuracy ≤3%
*The Accuracy will vary with disance.
RGB Resolution 1920x1080 @ 30 fps
RGB FoV (H x V x D) 79.1° x 50° x 88°°
Illumination Type Edge Emitting Laser x 2
Illumination Wavelength 850nm
Dimension (mm) 112 x 36.6 x 27 mm
Operating Temperature 0 ~ 40˚C
Ambient Temperature 0 ~ 40˚C
Storage Temperature -20 ~ 60˚C
Interface USB 3.0 Micro-B
Power 6W (USB Cable Y Cable, Type A)
Output Format RGB YUV / RGB24 / MJPEG
Output Format Depth 16 bits
SDK OpenNI 1.5 / 2.2, OpenCV
OS Windows 10
Ubuntu 16.04 / 18.04 / 20.04 / 22.04 LTS
Language Support C / C++
Environment Indoor
