LIPSedge™ L Series is the most compact 3D structured light camera on the market today with big features.

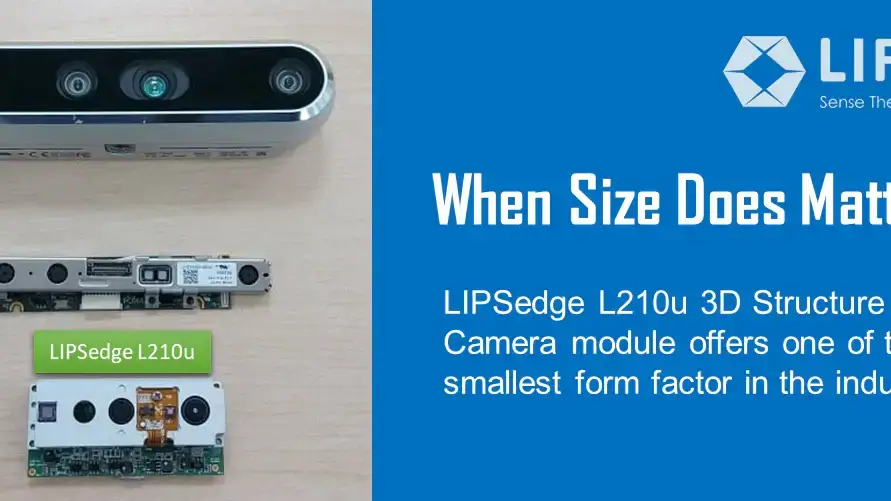

The LIPSedge L210u/L215u 3D structured light cameras, with up to Full-HD resolution, high precision (≤ 0.3% @100cm), and 940nm wavelength VCSEL light source can be used indoors and outdoors, and can support short-range 3D sensing applications such as 3D scan, 3D facial recognition, 3D measurement, and visual defect inspection.  The small form factor and high cost-performance of the LIPSedge L series make it an ideal RealSense alternative for customers looking to transition.

Product Highlights

  • Compact RGB-D structured-light sensor
  • Optimized for short-range applications
  • Accuracy: Up to 0.3% @ 100 cm
  • Small form factor / L x W x H: 54 x 25 x 11.3 mm
  • FoV 50° x 74° x 84° / Range 0.3 ~ 1 m
  • Maximum depth resolution 1280*800
  • Featuring VCSEL @ 940nm for indoor & outdoor use
  • Suitable for 3D scan, 3D facial recognition & 3D measurement applications​
Depth Technology Structured Light
Depth Z Accuracy 0.3% @ 100cm
Depth Max. Working Distance 1.2 m
Depth Min. Working Distance 0.4 m
Depth Frame Rate (USB Output) 1280x800@6fps, 640x480@25fps
Depth Shutter Type Global Shutter
Depth FoV (H x V) 50.7° x 74.2° (+/-2°)
RGB Resolution 1280x800/6fps (YUV)
640x480/25fps (YUV)
RGB FoV (H x V) H:45.89°@UXGA, 38.86°@720p, 45.89°@VGA
V: 58.89°
RGB Shutter Type Rolling Shutter
Illumination Type Infared
Illumination Wavelength 940 nm
Illuminating Component Vertical-cavity surface-emitting laser (VCSEL)
Dimension (mm) 54.0 x 25.0 x 11.3mm
Weight(g) 16.4 g
Ambient Temperature 0 ~ 40˚C
Storage Temperature -20 ~ 60˚C
Power USB Power-in, DC 5V/1A
Output Interface Micro USB (USB 2.0)
SDK Multiple Frameworks supported: OpenNI, NVIDIA Isaac, ROS
OS Windows 10
Ubuntu 16.04 / 18.04 LTS / 20.04 / 22.04 LTS
Environment Indoor
