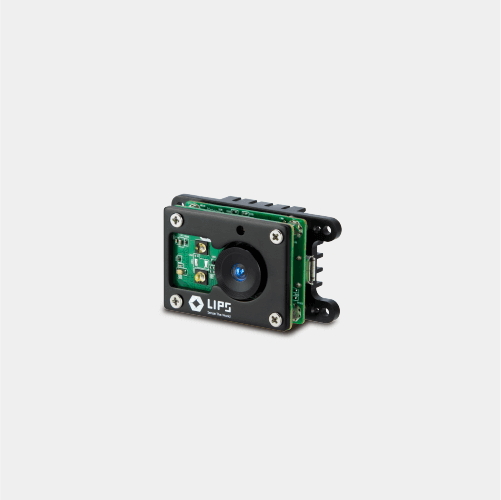

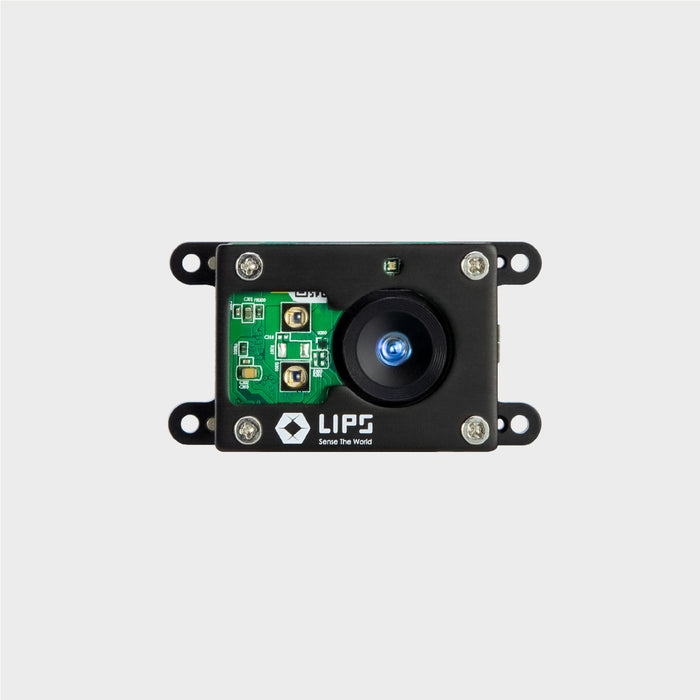

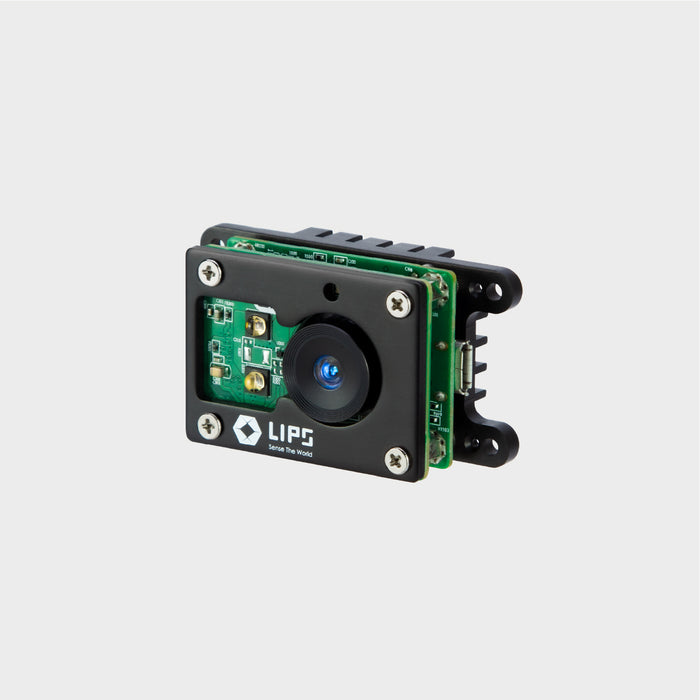

LIPSedge™ M3 is an innovative 3D Modular Camera targeting embedded systems and has built-in IMU that allows for more applications.
Using similar sensing technology as its larger cased sibling, the LIPSedge™ DL, LIPSedge®M3 has clearly advanced into a more compact form that is neater in size as well as pioneering an innovative modular design specifically targeting embedded system that can function precisely. Furthermore, this little piece also has built-in IMU (accelerometer and gyroscope) that allows for more applications, such as Gesture Control, People Counting, Behavior Analysis, Digital Signage, or Elevator Capacity Measurement.
| Depth Technology | Time-of-Flight |
| Depth Frame Rate | 80 x 60 @ 30fps (Native) |
| Depth Aperture | f/1.2 |
| Depth FoV (H x V x D) | 74.1° x 57.5° x 92° |
| Depth Operating Range | Near Mode: 0.2 ~ 1.0m
Normal Mode: 1 ~ 4m |
| Depth Z Accuracy | <=3% Typical
*The Accuracy will vary with disance. |
| Inertial Measurement Unit | 6-axis sensor (3-axis accelerator & 3-axis gyroscope) |
| Illumination Type | LED x 2 |
| Illumination Wavelength | 850nm |
| Dimension (mm) | 51 x 28 x 22.4 mm |
| Operating Temperature | 0˚ ~ 40˚ C |
| Ambient Temperature | 0 ~ 40˚C |
| Storage Temperature | -20 ~ 60˚C |
| Power | USB Power-in, DC 5V/1A |
| Interface | USB 2.0 Micro-B |
| Power Consumption | 4W |
| SDK | OpenNI 1.5 / 2.2, OpenCV |
| OS | Windows 10
Ubuntu 16.04 / 18.04 / 20.04 / 22.04 LTS |
| Language Support | C / C++ |
| Environment | Indoor |
| Depth Technology | Time-of-Flight |
| Depth Frame Rate | 80 x 60 @ 30fps (Native) |
| Depth Aperture | f/1.2 |
| Depth FoV (H x V x D) | 74.1° x 57.5° x 92° |
| Depth Operating Range | Near Mode: 0.2 ~ 1.0m
Normal Mode: 1 ~ 4m |
| Depth Z Accuracy | <=3% Typical
*The Accuracy will vary with disance. |
| Inertial Measurement Unit | 6-axis sensor (3-axis accelerator & 3-axis gyroscope) |
| Illumination Type | LED x 2 |
| Illumination Wavelength | 850nm |
| Dimension (mm) | 51 x 28 x 22.4 mm |
| Operating Temperature | 0˚ ~ 40˚ C |
| Ambient Temperature | 0 ~ 40˚C |
| Storage Temperature | -20 ~ 60˚C |
| Power | USB Power-in, DC 5V/1A |
| Interface | USB 2.0 Micro-B |
| Power Consumption | 4W |
| SDK | OpenNI 1.5 / 2.2, OpenCV |
| OS | Windows 10
Ubuntu 16.04 / 18.04 / 20.04 / 22.04 LTS |
| Language Support | C / C++ |
| Environment | Indoor |
